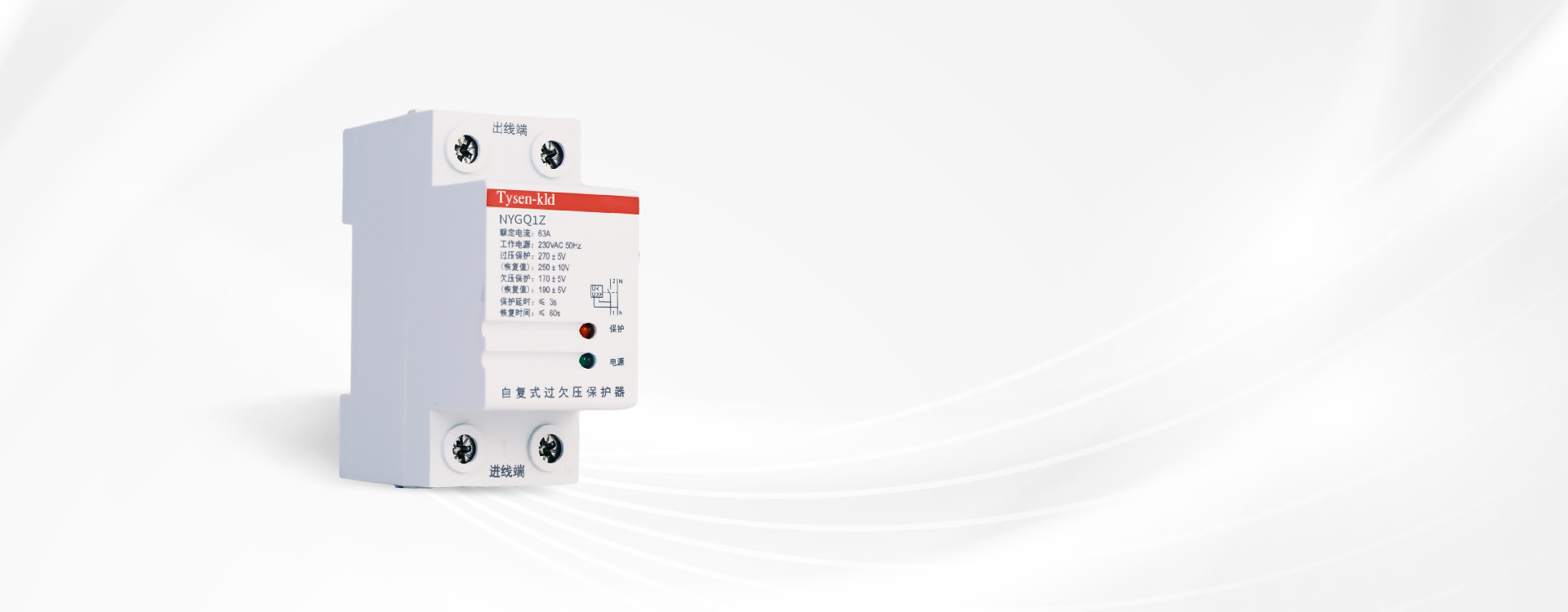

    NYGQ1Z


    Self-recovery Over-voltage


    and Under-voltage Protector


    （25-63A）





			 Simple
			 Efficient
			 Safe
			 Comprehensive












    PRODUCT OVERVIEW

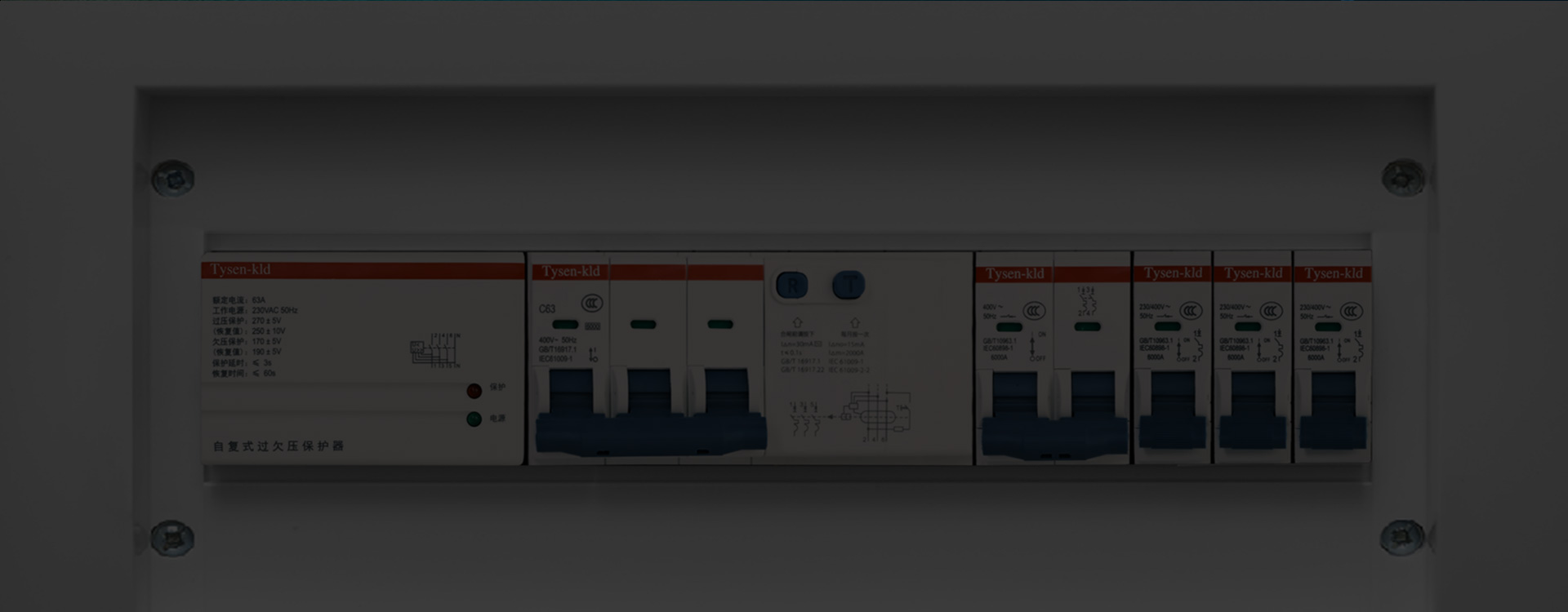

    NYGQ1Z series self-recovery over-voltage and under-voltage protector is installed in the circuit to detect changes in voltage parameters of the electrical equipments. When the voltage rises above the set value, it can automatically cut off the power supply; when the voltage is recovered to the level below the set value, it can automatically trun on the power supply. It’s commonly used in residential compounds, office buildings, shopping malls, factories and other areas of the electrical system to protect circuits and electrical equipment from the hazards of over-voltage and under-voltage.























				Technical parameters


















					   Model
					   Rated current
    In(A)
						Number  of poles
						Rated  operating
     voltage Ue(V）
						Rated  insulation
     voltage Ui(V)
						Rated  frequency (Hz)
						Over-voltage  starting  value（V）
						Constant  voltage  recovery  value（V）
						Under -voltage  starting  value（V）




						NYGQ1Z
					    25
						1P+N
						230
						690
						50
						270±5
						240-260
						175±5




						NYGQ1Z
					    32




						NYGQ1Z
					    40




						NYGQ1Z
					    50




						NYGQ1Z
					    63




						NYGQ1Z
					    25
						3P+N
						230
						690
						50
						270±5
						240-260
						175±5




						NYGQ1Z
					    32




						NYGQ1Z
					    40




						NYGQ1Z
					    50




						NYGQ1Z
					    63

















				Selection table


















						NYGQ1Z
						3P+N
						25A




						Product code
						Number of poles
						Rated current




						NYGQ1Z： Self-recovery over-voltage and under-voltage protector
						1P+N:1 pole+N
    3P+N:3 pole+N
						25A、32A、 40A、50A、63A







    Note: Conventional product adopts the mode of upper inlet and lower outlet. If you need the mode of lower outlet and upper outlet, please specify when ordering.














				       Technical Parameters










    NYGQ1ZSelf-recovery over-voltage and under-voltage protector



















    •



      Current shell  frame Inm (A) ：25、32、40、50、63


      Number  of poles：1P+N


      Rated operating voltage (V)：230


      Rated  insulation  voltage  Ui(V)：690


      Rated  frequency(Hz)：50


      Over-voltage  starting  value(V)：270±5


      Constant  voltage  recovery  value(V)：240-260


      Under -voltage  starting  value(V)：175±5




      •


























    •



      Current shell  frame Inm (A) ：25、32、40、50、63


      Number  of poles：3P+N


      Rated operating voltage (V)：230


      Rated  insulation  voltage  Ui(V)：690


      Rated  frequency(Hz)：50


      Over-voltage  starting  value(V)：270±5


      Constant  voltage  recovery  value(V)：240-260


      Under -voltage  starting  value(V)：175±5




      •























				       Selection table



























    •



      Product code  ： NYGQ1Z:Self-recovery over-voltage and under-voltage protector


      Number of poles：1P+N:1 pole+N/3P+N:3 pole+N


      Rated current：25A、32A、40A、50A、63A




      •



    Note: Conventional product adopts the mode of upper inlet and lower outlet. If you need the mode of lower outlet and upper outlet, please specify when ordering.
